SKF Bearings

SKF bearings 03062/03162/Q

Model:03062/03162/Q


Dimensions(mm):  15.875x41.275x14.288MM


Whatsapp:  +86 18554001053


Email:  skfnskoyo@gmail.com


Payment:  L/C, T/T, D/P, Money Gram,  Western Union, Paypal


Sample:  Free Samples Is Available


 Delivery Terms: By Sea, Air Or Express-DHL,FedEx, TNT, UPS, EMS



Description

The SKF bearing 03062/03162/Q is a specific type of tapered roller bearing from SKF. Here's a breakdown of its designation:

1. Bearing Type: Tapered Roller Bearing (Single Row)

  • Designed to handle combined radial and axial loads.

  • Commonly used in automotive, industrial, and heavy machinery applications.

2. Part Number Breakdown:

  • 03062 – Indicates the inner ring (cone) part number.

  • 03162 – Indicates the outer ring (cup) part number.

  • /Q – A suffix that typically denotes special features (e.g., improved internal geometry, enhanced heat treatment, or modified tolerances).

3. Dimensions (Approximate, Confirm with SKF Catalog):

  • Inner Diameter (d): ~30 mm (varies based on exact cone/cup pairing)

  • Outer Diameter (D): ~62 mm (depends on cup)

  • Width (B/T): Varies based on assembly

  • (For precise dimensions, refer to SKF’s official datasheet or bearing catalog.)

4. Applications:

  • Used in gearboxes, wheel hubs, and industrial machinery where combined radial and thrust loads are present.

  • Often found in automotive drivetrains, axles, and heavy-duty equipment.


30000-skf

Tapered roller bearings, single row 03062/03162/Q

Bearing number : 03062/03162/Q

Size (mm) : 15,875x41,275x14,288

Brand : SKF

Bore Diameter (mm) : 15,875

Outer Diameter (mm) : 41,275

Width (mm) : 14,288

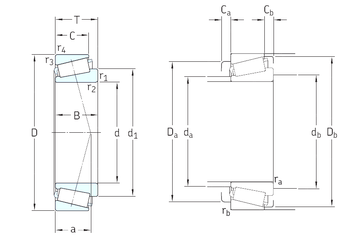

Bearing dimensions and specification in IUA catalogue:

d - 15.875 mm

D - 41.275 mm

T - 14.288 mm

d1 - - 28.1 mm

B - 14.681 mm

C - 11.112 mm

r1,2 - min. - 1.3 mm

r3,4 - min. - 2 mm

a - 9 mm

da - max. - 22 mm

db - min. - 22 mm

Da - min. - 33.5 mm

Da - max. - 33.5 mm

Db - min. - 37 mm

Ca - min. - 2 mm

Cb - min. - 3 mm

ra - max. - 1.3 mm

rb - max. - 2 mm

Basic dynamic load rating - C - 22 kN

Basic static load rating - C0 - 21.2 kN

Fatigue load limit - Pu - 2.2 kN

Reference speed - 20000 r/min

Limiting speed - 20000 r/min

Calculation factor - e - 0.31

Calculation factor - Y - 1.9

Calculation factor - Y0 - 1.1

Mass bearing - 0.095 kg

Tags :  IUA , 15,875x41,275x14,288
