SKF bearings 1224KM
The renowned Swedish brand SKF bearings 1224 KM Quick Delivery SKF Self-aligning ball bearings.Suitable for various devices
Read MoreModel: | 1224 KM |
Dimensions(mm): | 120x215x42 |
Email: | skfnskoyo@gmail.com |
Payment: | L/C, T/T, D/P, Money Gram, Western Union, Paypal |
Sample: | Free Samples Is Available |
Delivery Terms: | By Sea, Air Or Express-DHL,FedEx, TNT, UPS, EMS |
The standard products provided by SKF include over 20,000 types of bearings. In addition to rolling bearings, the SKF Group also manufactures linear bearings, sliding bearings, bearing housings, ball and roller screws, textile machinery components, retaining rings, machine tools and various precision mechanical components. With extensive experience in these fields, SKF possesses the indispensable knowledge and expertise for developing, manufacturing and applying various advanced engineering products. From small ones like micro bearings weighing only 0.003 grams to large ones weighing 34 tons each. Moreover,
Bearing number : 1224KM
Size (mm) : 120x215x42
Brand : SKF
Bore Diameter (mm) : 120
Outer Diameter (mm) : 215
Width (mm) : 42

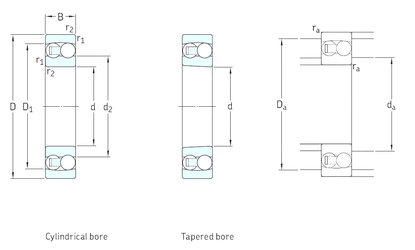

Bearing dimensions and specification in SKF catalogue:
d - 120 mm
D - 215 mm
B - 42 mm
C - 42 mm
d2 - 149 mm
r1 min. - 2,1 mm
r2 min. - 2,1 mm
D1 - 190 mm
da min. - 132 mm
Da max. - 203 mm
ra max. - 2 mm
Weight - 6,75 Kg
Basic dynamic load rating (C) - 119 kN
Basic static load rating (C0) - 53 kN
Fatigue load limit (Pu) - 2,12
Reference speed - 6300 r/min
Limiting speed - 4000 r/min
Calculation factor (e) - 0,19
Calculation factor (kr) - 0,04
Calculation factor (Y0) - 3,6
Calculation factor (Y1) - 3,3
Calculation factor (Y2) - 5,1
